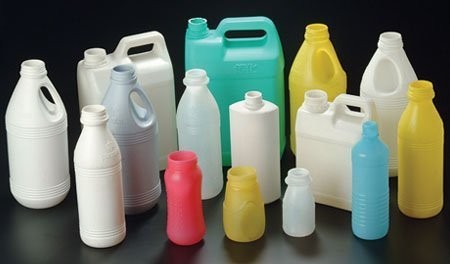

Blow moulding is a manufacturing process used to produce hollow plastic parts, such as bottles and containers. While it is efficient and widely used, surface defects can occur, compromising the appearance, functionality, and strength of the finished product. Identifying the root causes and implementing effective solutions is essential for maintaining quality and reducing production costs.
Common Surface Defects in Blow Moulding
Blisters
Description: Small bubbles or raised areas on the surface of the moulded product.
Causes:
Moisture in the resin.
Overheating of the parison.
Inadequate cooling.
Solutions:
Dry the resin thoroughly before use.
Optimize heating temperature and time.
Improve cooling system efficiency.
Burn Marks
Description: Discolored, dark, or scorched areas on the surface.
Causes:
Excessive mould temperature.
Air entrapment during mould closing.
Degradation of the polymer due to prolonged heating.
Solutions:
Reduce mould and barrel temperature.
Improve venting in the mould.
Minimize dwell time in the barrel.
Streaks or Flow Marks
Description: Lines or patterns on the surface caused by uneven material flow.
Causes:
Poor melt flow due to inconsistent temperature.
Contaminants or incompatible materials in the resin.
Improper die or parison design.
Solutions:
Ensure uniform melt temperature.
Use clean, high-quality material.
Modify die or parison to ensure even distribution.
Orange Peel Texture
Description: Rough, dimpled surface resembling an orange peel.
Causes:
Improper cooling rate.
Inconsistent mould surface temperature.
Inadequate mould polishing.
Solutions:
Ensure uniform and adequate mould cooling.
Polish mould cavity to a smooth finish.
Maintain proper material and mould temperatures.
Parison Sag or Stretch Marks
Description: Visible stretch lines or thin areas on the product.
Causes:
Overheating of parison.
Poor material distribution due to gravity before inflation.
Solutions:
Adjust heating profile to avoid overheating.
Use parison programming to control wall thickness.
Employ cooling or support techniques before inflation.
Weld Lines
Description: Visible seams where material flows meet and do not fuse properly.
Causes:
Insufficient material flow or temperature.
Improper mould design.
Solutions:
Increase melt temperature or flow rate.
Redesign mould to promote better flow paths.
Surface Contamination or Inclusions
Description: Foreign particles embedded on the product surface.
Causes:
Contaminated resin.
Dirty mould or processing equipment.
Solutions:
Use clean, filtered resin.
Implement regular equipment cleaning protocols.
Preventive Measures and Best Practices
Material Handling:
Store and handle materials properly to avoid moisture and contamination.
Use appropriate drying equipment for hygroscopic resins.
Mould Maintenance:
Clean and inspect moulds regularly to ensure smooth surfaces and proper venting.
Check for wear or damage that may affect surface finish.
Process Control:
Monitor and control temperature, pressure, and cycle time precisely.
Implement closed-loop control systems where possible.
Design Considerations:
Design moulds and parisons for uniform material distribution.
Incorporate adequate venting and smooth flow paths.
Conclusion
Surface defects in blow moulding can significantly affect the appearance, performance, and durability of plastic products. By understanding the common types of surface defects, their root causes, and effective solutions, manufacturers can enhance product quality and reduce waste. Continuous process monitoring, maintenance, and quality control are essential to achieving consistent and defect-free production.
