Injection moulding is one of the most widely used manufacturing processes for producing high-quality plastic components in large quantities. From automotive parts and medical devices to household products and electronic enclosures, injection moulding delivers precision, consistency, and cost-effectiveness. The process involves injecting molten plastic into a specially designed mould, where it cools and solidifies into the desired shape.
Understanding how injection moulds work helps manufacturers improve product quality, reduce production costs, and achieve faster production cycles. This guide explains the complete injection moulding process step by step.
What Is an Injection Mould?

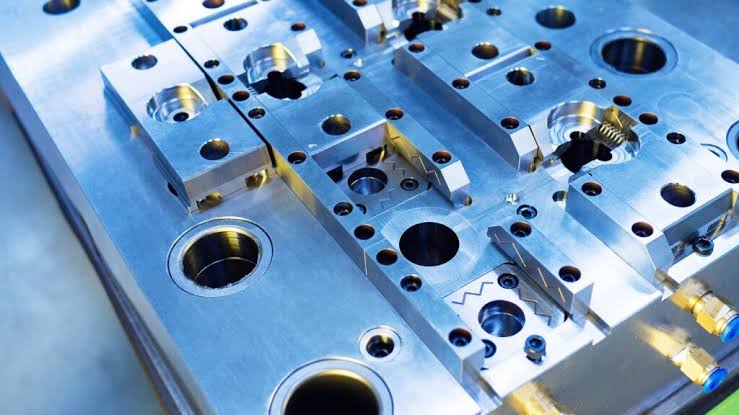

An injection mould is a precision-engineered tool used to shape molten plastic into finished products. Typically manufactured from hardened steel, pre-hardened steel, or aluminium, an injection mould consists of two primary sections:
- Core Half (Moving Half)
- Cavity Half (Fixed Half)
When the mould closes, these halves create a cavity matching the exact shape of the final product.
Step-by-Step Injection Moulding Process
Step 1: Plastic Material Preparation
The process begins with selecting the appropriate plastic resin based on the product’s application. Common materials include:
- Polypropylene (PP)
- Polyethylene (PE)
- ABS
- Polycarbonate (PC)
- Nylon (PA)
- PET
- PVC
Plastic pellets may also contain additives such as:
- Colour masterbatch
- UV stabilizers
- Flame retardants
- Glass fibres
- Impact modifiers
The material is often dried before processing to remove moisture and prevent defects.
Step 2: Feeding the Hopper
The plastic pellets are poured into the machine hopper.
The hopper continuously feeds pellets into the heated barrel using gravity, ensuring a constant supply during production.
Step 3: Melting the Plastic
Inside the barrel, a rotating screw moves the plastic pellets forward while heaters gradually raise the temperature.
The screw performs three important functions:
- Transporting material
- Compressing pellets
- Melting plastic into a uniform molten state
Typical melting temperatures range from:
- 180°C to 320°C, depending on the plastic material.
Step 4: Injection into the Mould
Once enough molten plastic accumulates in front of the screw, the screw moves forward like a plunger.
High pressure forces the molten plastic through:
- Nozzle
- Sprue
- Runner system
- Gates
The molten material fills every section of the mould cavity.
Injection pressure often ranges between 500 and 2,500 bar, depending on the product design and material.
Step 5: Packing and Holding Pressure
After the cavity is filled, additional pressure is applied.
This packing stage compensates for plastic shrinkage during cooling and ensures:
- Complete cavity filling
- Dimensional accuracy
- Reduced sink marks
- Better surface finish
Holding pressure is maintained for a few seconds before cooling begins.
Step 6: Cooling the Plastic
Cooling is one of the most critical stages of injection moulding.
The mould contains internal cooling channels through which water or oil circulates, removing heat from the molten plastic.
During cooling:
- Plastic solidifies
- Part dimensions stabilize
- Internal stresses reduce
Cooling time often accounts for 50–70% of the total moulding cycle.
Step 7: Mould Opening
After sufficient cooling, the mould opens automatically.
The moving half separates from the fixed half while keeping the finished component attached to the core side.
Modern moulds use precise guiding systems to ensure smooth opening and closing.
Step 8: Part Ejection
An ejector system pushes the finished plastic component out of the mould.
Common ejection mechanisms include:
- Ejector pins
- Sleeves
- Stripper plates
- Air ejection
The part falls onto a conveyor belt or collection tray for further processing.
Step 9: Mould Closing and Repeat Cycle
After ejection:
- The mould closes again.
- Clamping force is applied.
- The machine starts the next injection cycle.
This automated process repeats continuously, producing thousands or even millions of identical parts with exceptional consistency.
Conclusion
Injection moulding is a highly efficient and precise manufacturing process that enables the large-scale production of complex plastic components. By following a carefully controlled sequence—material preparation, melting, injection, packing, cooling, ejection, and cycle repetition—manufacturers can consistently produce high-quality parts with minimal waste and excellent dimensional accuracy. A well-designed mould, combined with optimized process parameters and regular maintenance, is essential for maximizing productivity, reducing defects, and achieving long-term manufacturing success.
